GNSS Surveying

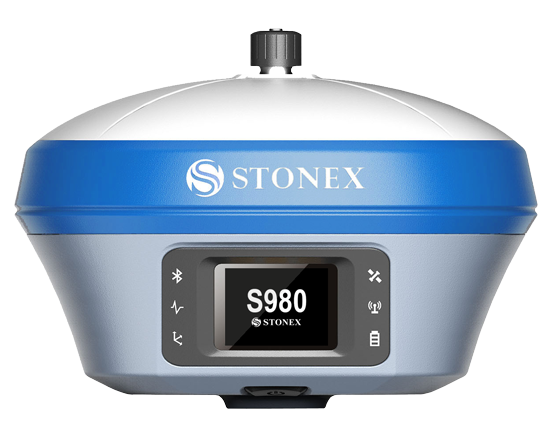

S980 GNSS Receiver
The perfect base GNSS receiver

Stonex S980 integrated GNSS receiver tracks all the present constellations and satellite signals GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS.

Through the 4G GSM modem a fast internet connection is guaranteed and the Bluetooth and Wi-Fi modules allow always reliable data flow to the controller. These features combined with the integrated 2-5 watt radio make S980 the perfect base station receiver.

The color touch display and the possibility of connecting an external antenna makes S980 an extremely effective receiver for every type of job.

S980 is also equipped with an E-Bubble and the optional IMU technology: fast initialization, up to 60° inclination. S980 1PPS port can be used in applications that require precise synchronization time to ensure that multiple instruments work together or that use the same parameters for system integration based on precise time.

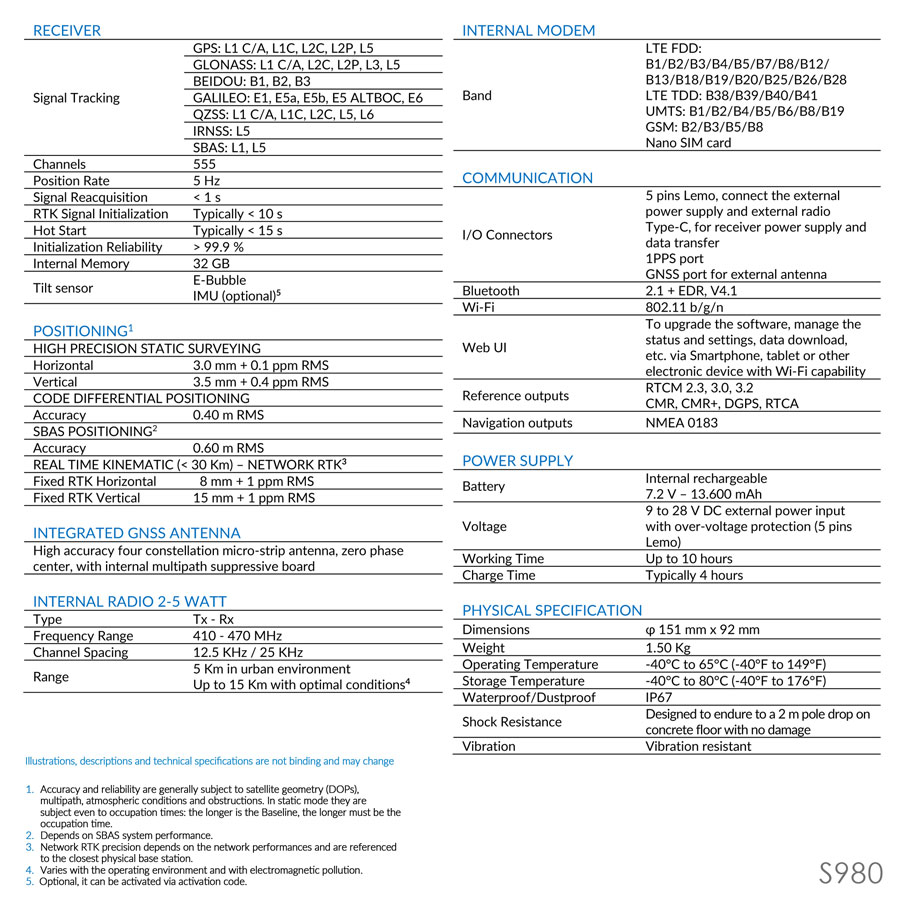

S980 DATA SHEET S980 BROCHURE

Price:   $9,500.00 - $10,500.00
Questions? Contact Tyler Bristow | 757.647.7016 | tyler@centerlinemapping.com

S980 GNSS Receiver Features



MULTI CONSTELLATION
Stonex S980 with its 555 channels, provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS) are included, no additional cost.

2-5W RADIO
S980 has integrated 2-5W UHF radio with 410-470MHz frequency. Our receiver is equipped with an external radio antenna to work better.

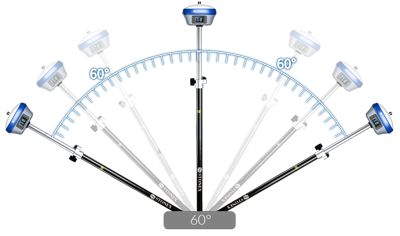

ELECTRONIC BUBBLE + IMU
On the S980 through the E-Bubble it can be displayed directly in the software if the pole is vertical and the point will be recorded automatically when the pole is levelled. As an option, IMU technology is available.

COLOR TOUCH DISPLAY
S980 comes with a convenient color touch display for easy management of the most important functions.

EXTERNAL GNSS ANTENNA
S980, through the appropriate connector, can be connected to an external GNSS antenna and is transformed from an RTK receiver to CORS.
