GNSS Surveying

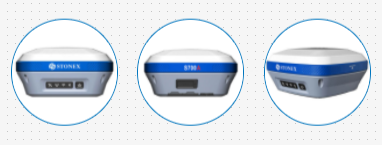

S700A GNSS Receiver
Modular GNSS system with Atlas®

The Stonex S700A is a compact, high-performance GNSS receiver that features a multi-constellation, 700 channel, GNSS board.

S700A supports GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS. S700A full version supports L-Band correction via satellite (no cell service required).

The unique internal antenna combines GNSS, Bluetooth and Wi-Fi integrated modules to optimize space and increase performance. This technology provides stronger and cleaner signal monitoring, which means unprecedented results. Designed for all day use in surveying applications, the S700A includes several features: Linux Operating System, WEB UI interface, 4G Modem, high battery capacity, Type-C connector and IP67 certification.

Stonex S700A GNSS receiver full version, thanks to aRTK function and Atlas® correction service, is an ideal solution for mapping in open or remote areas. Atlas® delivers world wide centimeter-level correction data through L-band communication satellites.

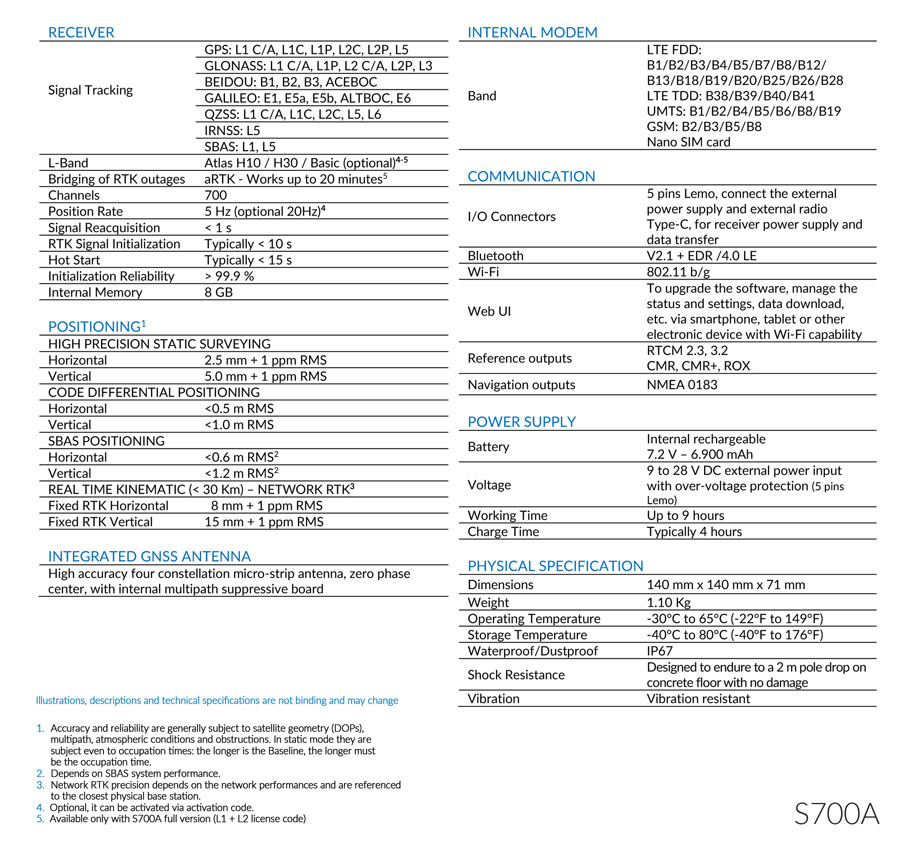

S700A DATA SHEET

S700A BROCHURE

Price:   For Rent or For Sale
Call For Best Price!

Questions? Contact Tyler Bristow | 757.647.7016 | tyler@centerlinemapping.com

S700A GNSS Receiver Features


MULTI CONSTELLATION
Stonex S700A with its 700 channels, provides an excellent on board real time navigation solution with high accuracy. All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS) are included. Entry level version has only L1 and full version has L1, L2 and L3 frequencies.

WEB UI CONTROL
To initialize, manage, monitor the settings of the receiver and to download data using portable or PC, smartphone or tablet with Wi-Fi capability.

NEW BATTERY AND TYPE-C
Stonex S700A is delivered with a large capacity lithium battery that gives you up to 9 hours working. It is also equipped with Type-C connector.

4G MODEM
S700A has an internal 4G modem that operates with all world signals.

TWO VERSIONS
The ability to purchase an entry level version and then upgrade the receiver to the full version provides flexibility to all professionals in the field.
