R180 Robotic Total Station

The R180 is a highly accurate and fast Android robotic station. It features a rotation speed of 180°/sec and an EDM accuracy of 1 mm + 1 ppm, with a range of up to 1000 m without a prism. The R180 is available in two versions, 0.5″ and 1″ second. For both models, the quietness and smoothness in prism searches and rotations are among the most observed and appreciated features.

Equipped with the Android operating system, the R180 has Cube-a as onboard software. This enables users to navigate online and interact with the touch screen in an easy and familiar way.

The Cube-a onboard software includes all the classic functions of the program, as well as the integration of jobs done with GNSS and surveys done with the total station. This allows operators to achieve complex and professional work in a short time and with high accuracy. Additionally, the R180 has a camera and a light guide to further facilitate field work.

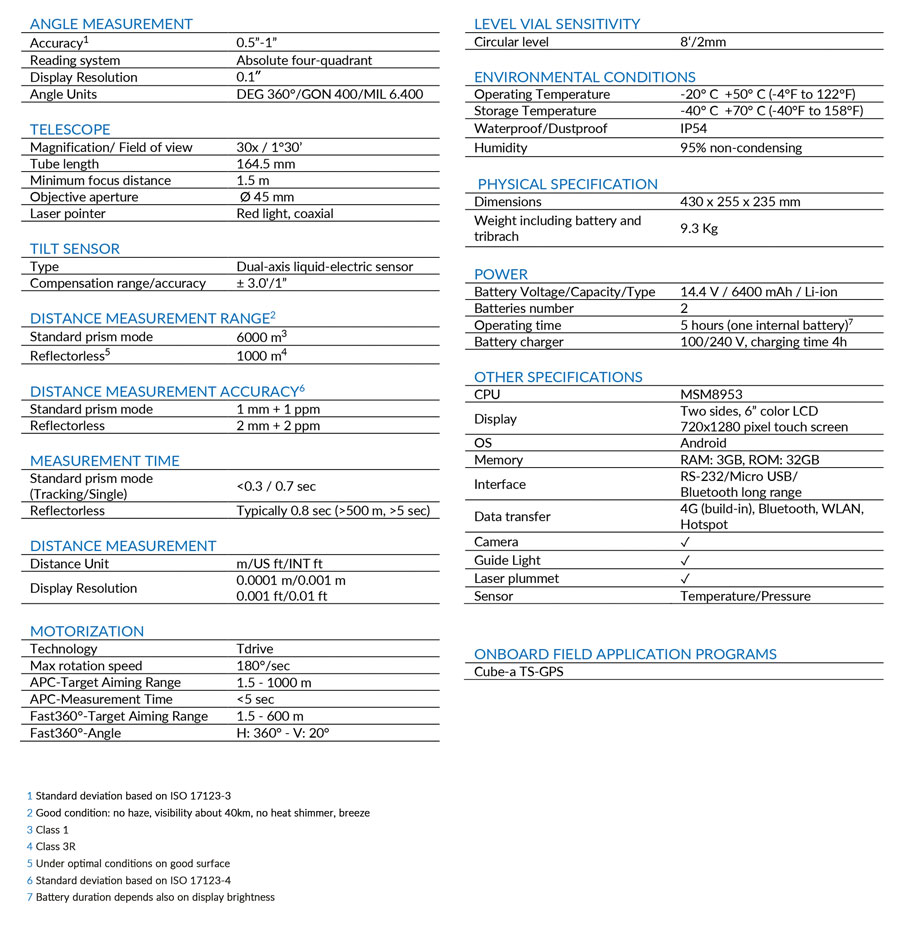

R180 DATA SHEET

R180 BROCHURE

Price:   Call or Email for a Quote!
 Questions? Contact Tyler Bristow | 757.647.7016 | tyler@centerlinemapping.com

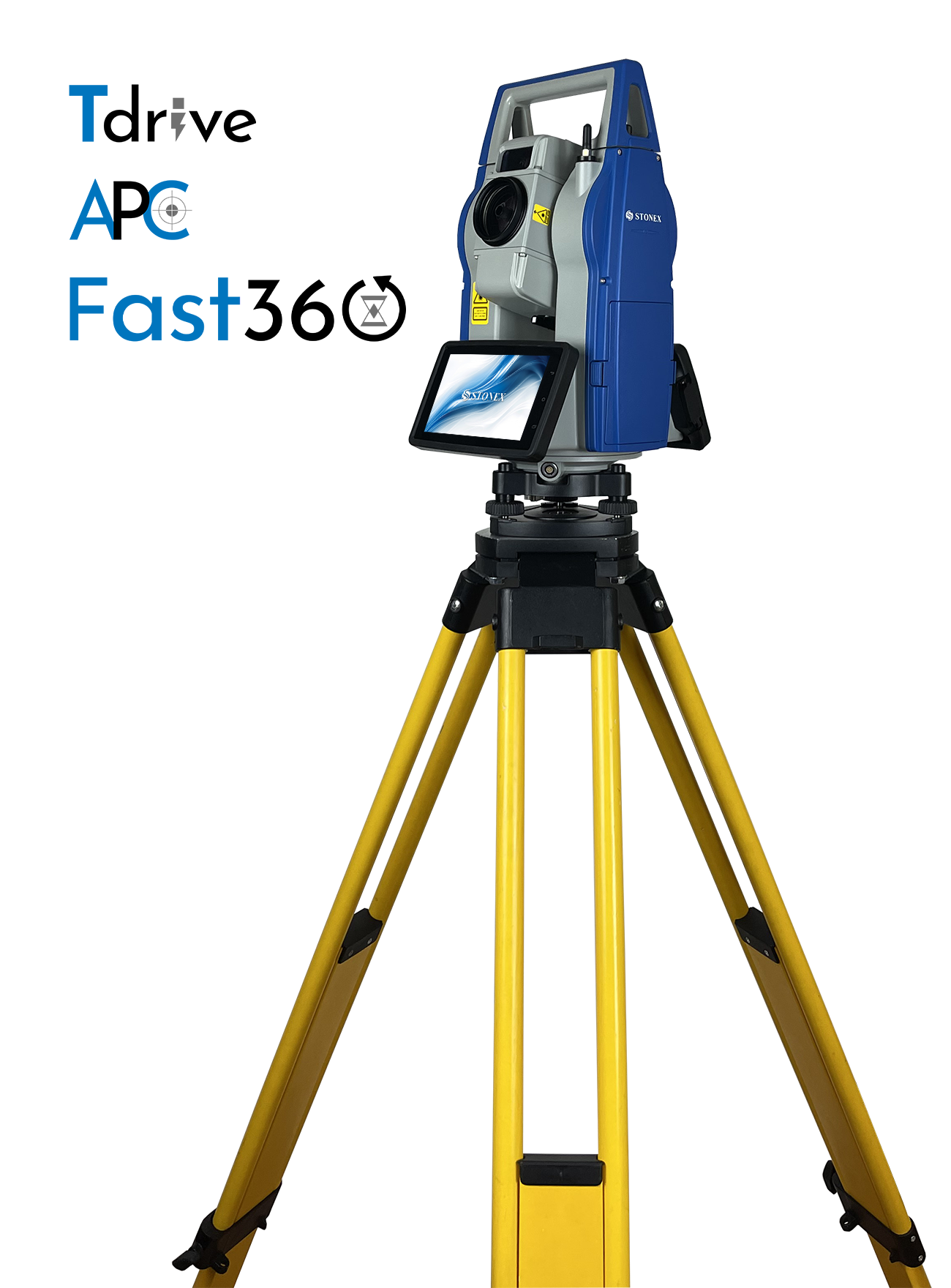

R180 Total Station Features



TDRIVE MOTOR, FAST AND SILENT
The R180 Robotic total station boasts a rotation speed of 180°/sec, making it one of the fastest in its product category. Not only is it speedy, but it is also impressively quiet, with noise levels among the lowest in its class. Additionally, the Tdrive technology, with a very high speed motor, allows for high-speed pursuit, even with a prism installed on moving vehicles. Not using gear technology ensures frictionless movement, greater durability, and less maintenance.

HIGH ACCURACY AND PROFESSIONAL RESULTS
This instrument is top-of-the-line. Its detailed engineering allows for exceptional performance, achieving an accuracy of 1 mm + 1 ppm with a prism, at a measurement speed of significantly less than one second.

LONG DISTANCE REFLECTORLESS
R180 guarantees high accuracy long range measurements: up to 1000 m in reflectorless mode and up to 6000 m using a single prism, with millimeter accuracy.

BUILT-IN CAMERA
The R180 is further enhanced by the addition of a built-in camera, which can be utilized thanks to the presence of two 6-inch screens. This camera allows you to view the points operator have surveyed on the large screens, or to use the image to help with collimation.

ANDROID AND CUBE-A ON BOARD
R180 is equipped with an Android operating system and has Cube-a installed on board. The 6-inch touch screens allow you to have complete control of the station.

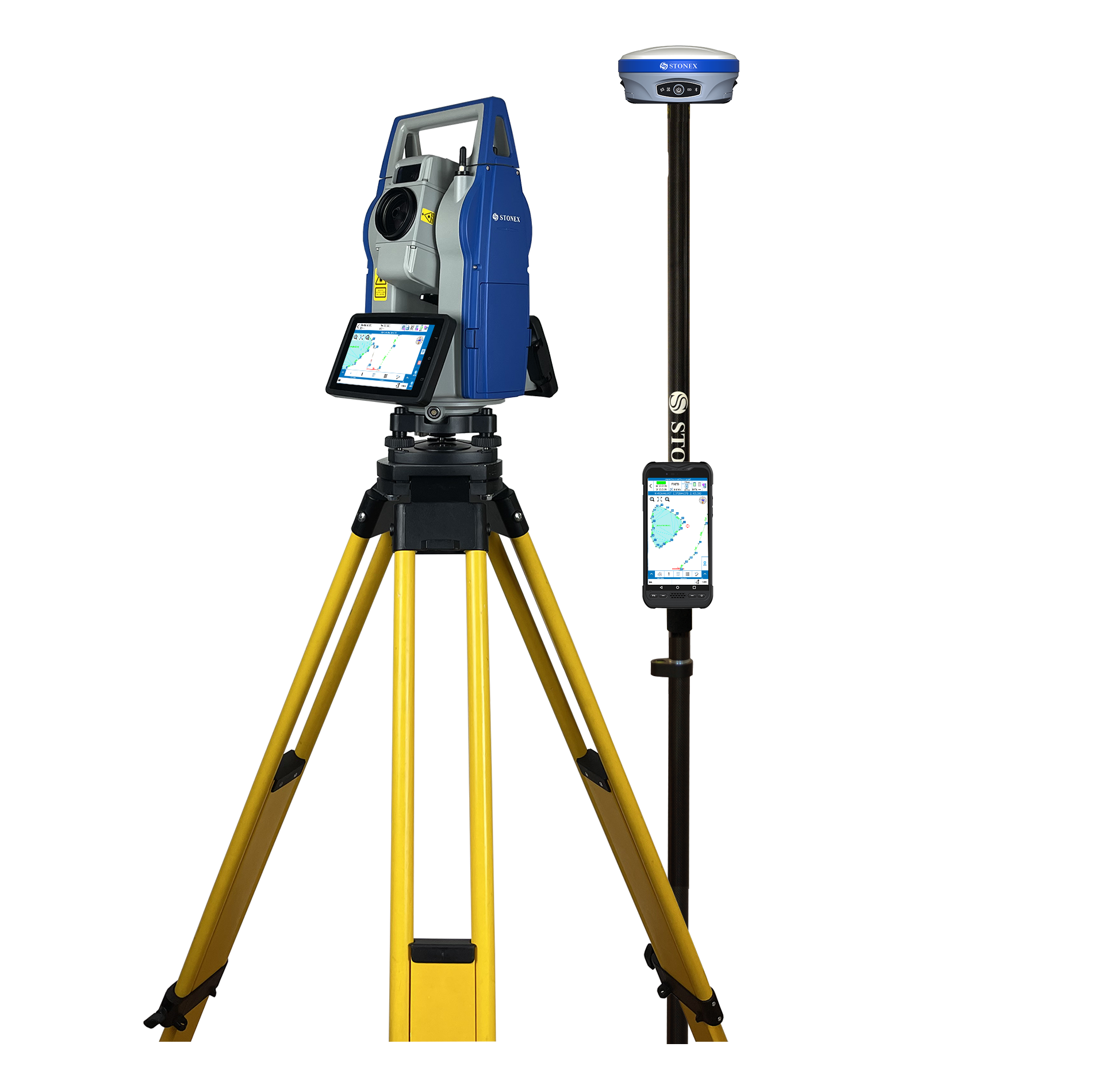

OnePole Solution


TS+GPS with Cube-a Software

OnePole Solution combines the millimeter positioning accuracy of a prism measurement with the advantage of measuring points not visible from the TS through the GPS Receiver. A total station needs local control points on which it can be set. These points must be visible from the station and therefore the line of sight has to be free of obstacles. An RTK GPS receiver can determine its position in seconds with centimeter level accuracy using data from satellites. The ability to combine and use both systems simultaneously greatly improves surveying efficiency.

Advantages of the system:
  • The OnePole Solution allows you to work simultaneously with TS and GPS
  • TS and GPS can be simultaneously connected to the controller using Bluetooth
  • Change the measurement mode from TS to GPS by one simple tap on the TS/GPS switch button
  • Reduce prism search times through auto aiming to the current GPS position
  • Easily setup your TS position by Station On Point and Free Station/Resection programs
  • View your TS and GPS surveys on Google Maps
